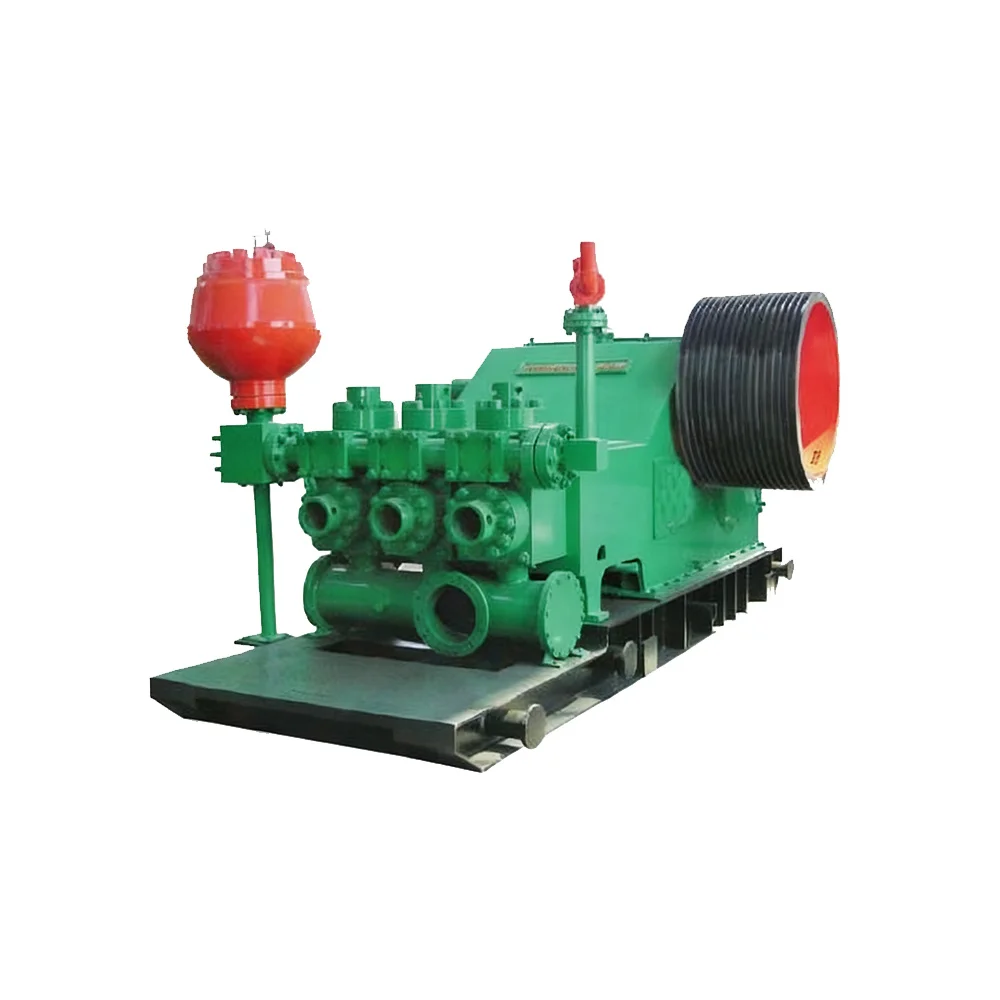

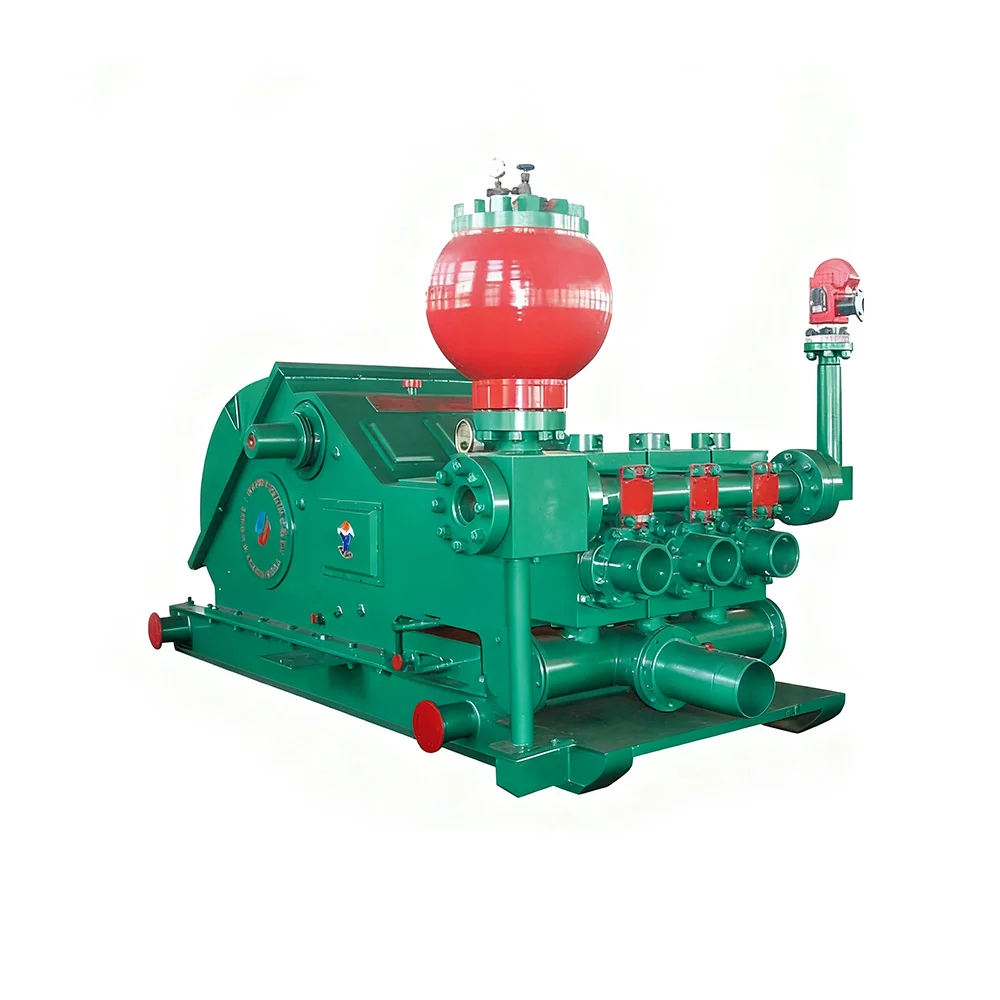

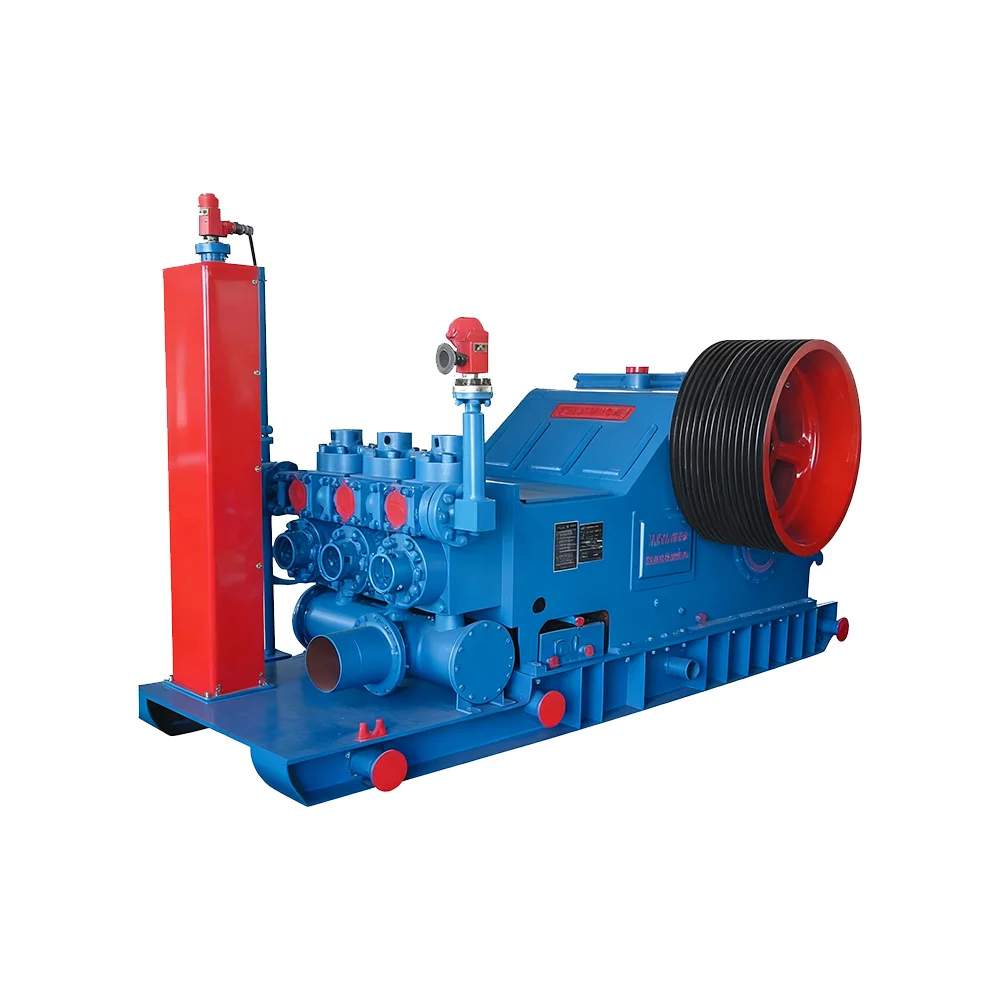

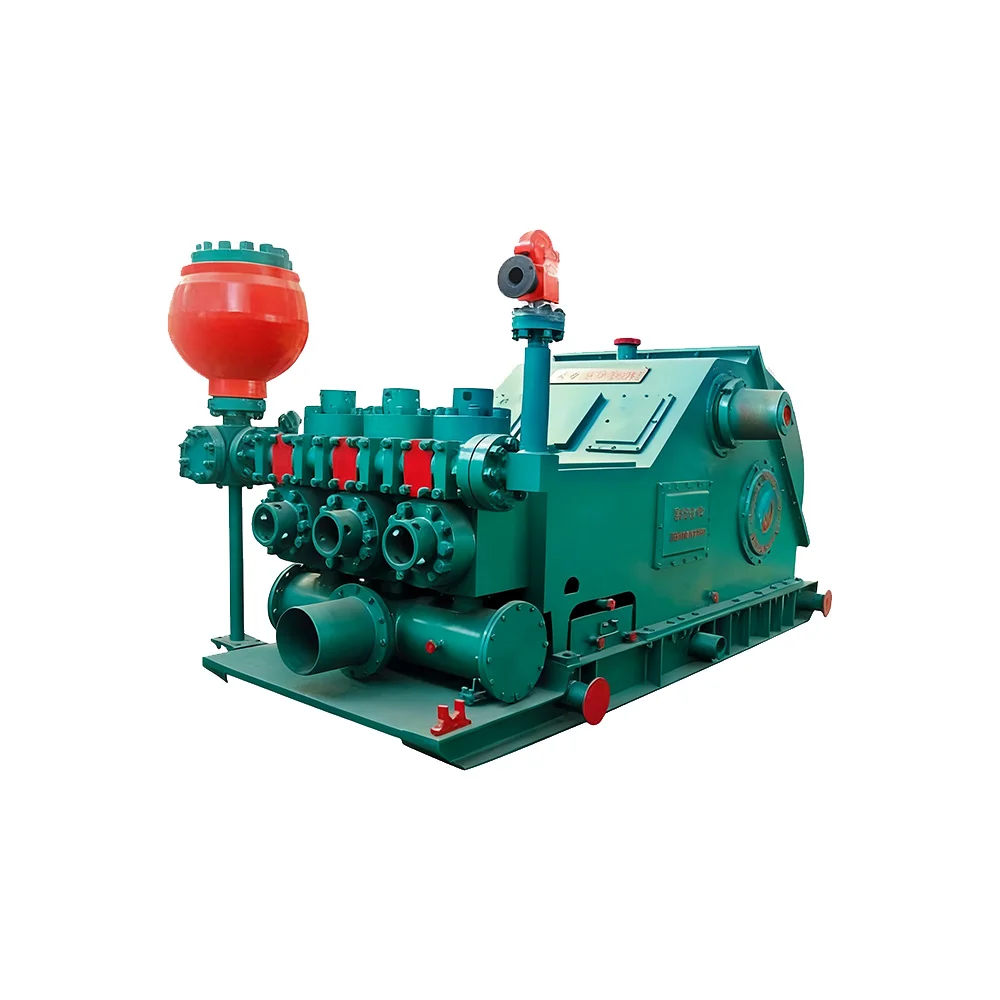

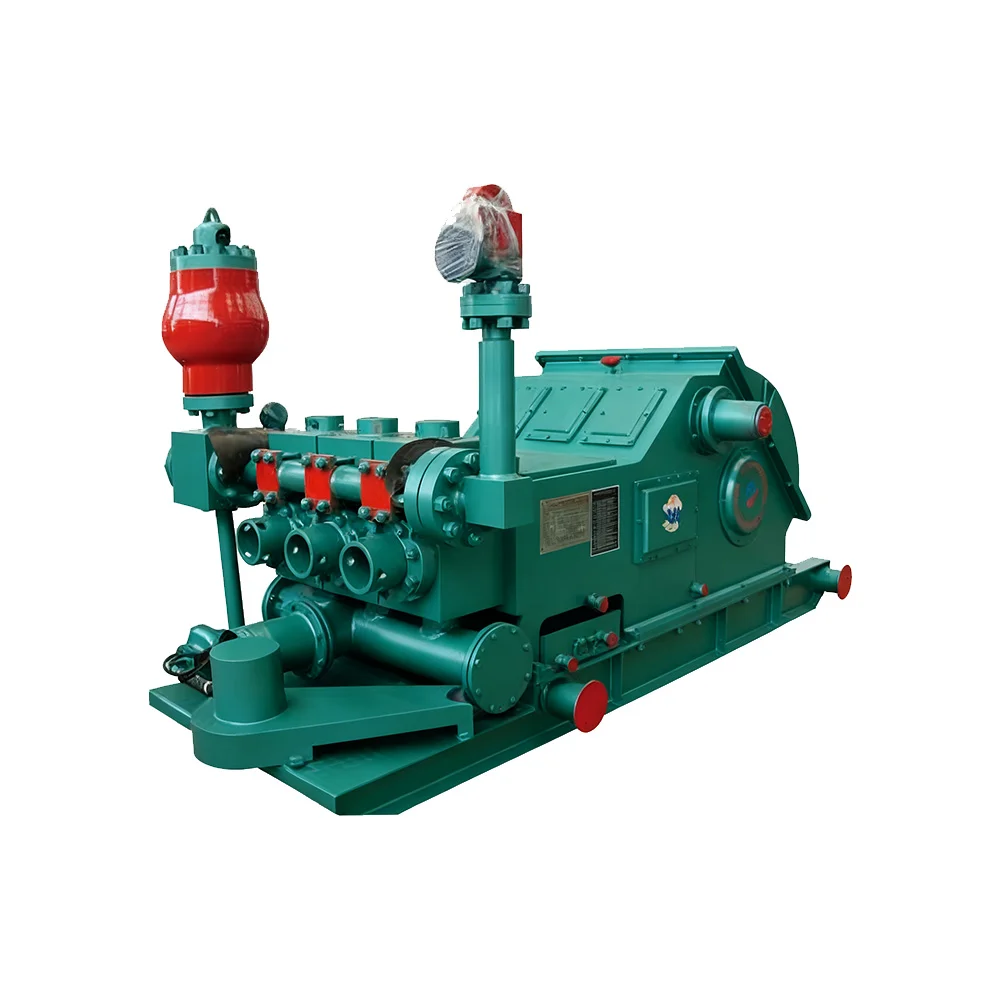

Triplex Mud Pump RL3NB-1300A

PRODUCT CENTER

Pump Speed (Stroke/Min)	Liner size (mm) and Pressure Rating (Mpa)
	Φ130	Φ140	Φ150	Φ160	Φ170	Φ180	Φ190
	35	31	27	24	21	19	17
	Displacement (L/S)
120	24.28	28.16	32.32	36.78	41.52	46.54	51.86
110	22.25	25.81	29.63	33.71	38.06	42.67	47.54
100	20.23	23.46	26.94	30.65	34.60	38.79	43.22
90	18.21	21.12	24.24	27.58	31.14	34.91	38.89
80	16.19	18.77	21.55	24.52	27.68	31.03	34.57
Basedon100%volumetricefficiencyand90%mechanicalefficiency
